Four Shaft Shredders

QUATRO Four Shaft Shredder / HIGH TORQUE FOUR SHAFT SHREDDING MACHINE UP TO 10 TON/HOUR

QUATRO
Four Shaft Shredder

HIGH TORQUE FOUR SHAFT SHREDDING MACHINE UP TO 10 TON/HOUR

The Donasonic QUATRO Four Shaft Shredder is designed with simplicity in mind. The QUATRO is a high-torque, four shaft shredder, designed for use where the defined output size is critical. For secure destruction, where output sizes are security critical or required for performance of the downstream process, the Donasonic QUATRO four shaft shredder can help. Dependant on the machine application and model, the QUATRO can achieve throughputs of up to 10 T/hr.

It is a versatile shredding machine that can be employed as a pre-shredder for large particles (IBC’s, drums, cables, etc.) and as a fine shredder for smaller output requirements (SRF, metal chips, etc.).

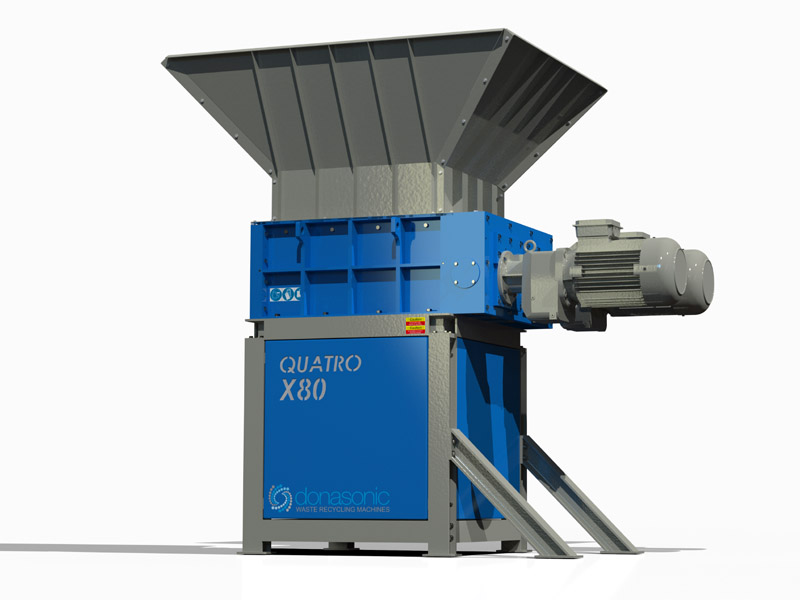

QUATRO X80

DIMENSIONS AND WEIGHT
Overall Dimensions (mm) (LxWxH) 2400 x 1100 x 2350
Total Weight Kg 10,000 (max depending on drive configuration and blades/strips selection)
CUTTING UNIT
Cutting Space (mm) (LxW) 800 x 700
DRIVE SYSTEM
Drive Power KW 2×30, 2×37, 2×45, 2×55, 2×75

QUATRO X120

DIMENSIONS AND WEIGHT
Overall Dimensions (mm) (LxWxH) 2800 x 1100 x 2350
Total Weight Kg 15,000 (max depending on drive configuration and blades/strips selection)
CUTTING UNIT
Cutting Space (mm) (LxW) 1200 x 700
DRIVE SYSTEM
Drive Power KW 2×37, 2×45, 2×55, 2×75

QUATRO X150

DIMENSIONS AND WEIGHT
Overall Dimensions (mm) (LxWxH) 3100 x 1100 x 2350
Total Weight Kg 20,000 (max depending on drive configuration and blades/strips selection)
CUTTING UNIT
Cutting Space (mm) (LxW) 1500 x 700
DRIVE SYSTEM
Drive Power KW 2×37, 2×45, 2×55, 2×75

FURTHER INFORMATION

The QUATRO four shaft shredding machine is cloud connected, with multiple drive options and blade options – let us define your shredder for your waste.

With intelligent auto-reverse to avoid machine damage you can be safe in the knowledge the Donasonic QUATRO will be your best employee.

Like all Donasonic machines, Central lubrication is fitted to avoid unnecessary maintenance and downtime, plus optional IIOT cloud based real-time monitoring allow control and analysis of your systems performance, ensuring the maximum up-time and preventative maintenance.

APPLICATIONS

For different applications we choose from a variety of drive options, from high torque Geared Electromotor, to hydraulic drive units for extremely tough materials.

  • Secure Document Destruction.
  • RDF (Refuse Derived Fuel) / SRF (Solid Recovered Fuel).
  • MSW (Municipal Solid Waste).
  • WEEE (Waste Electrical and Electronic Equipment).
  • Cables (Domestic & Industrial).
  • Tyres (Cars, Trucks, Construction Machinery).
  • Car and Truck Oil Filters.
  • Reject Materials, Textiles, Carpets and Floor Coverings.
  • Domestic, Commercial and Bulky Refuse.
  • IBC’s/Drums.
  • Paper, data, files, cardboard etc.

DELIVERING THROUPUTS OF UP TO 10 T/HR

PRE-SHREDDER FOR LARGE PARTICLES (IBC’S, DRUMS, CABLES ETC)

FINE SHREDDING FOR SMALLER OUTPUT REQUIREMENTS (SRF, METAL CHIPS ETC)
